NJT8319N

NJT8319N receives a reference signal (10 MHz) and an IF signal (L-Band: 950 to 1,450 MHz) input and transmits an RF signal (Standard Ku-band: 14.0 to 14.5 GHz) output.

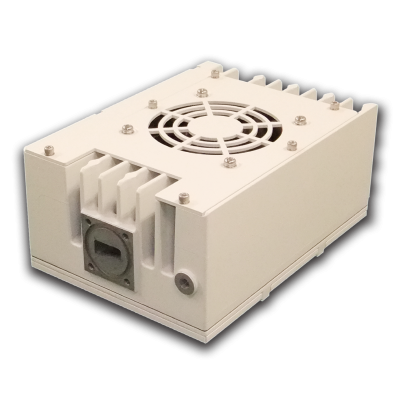

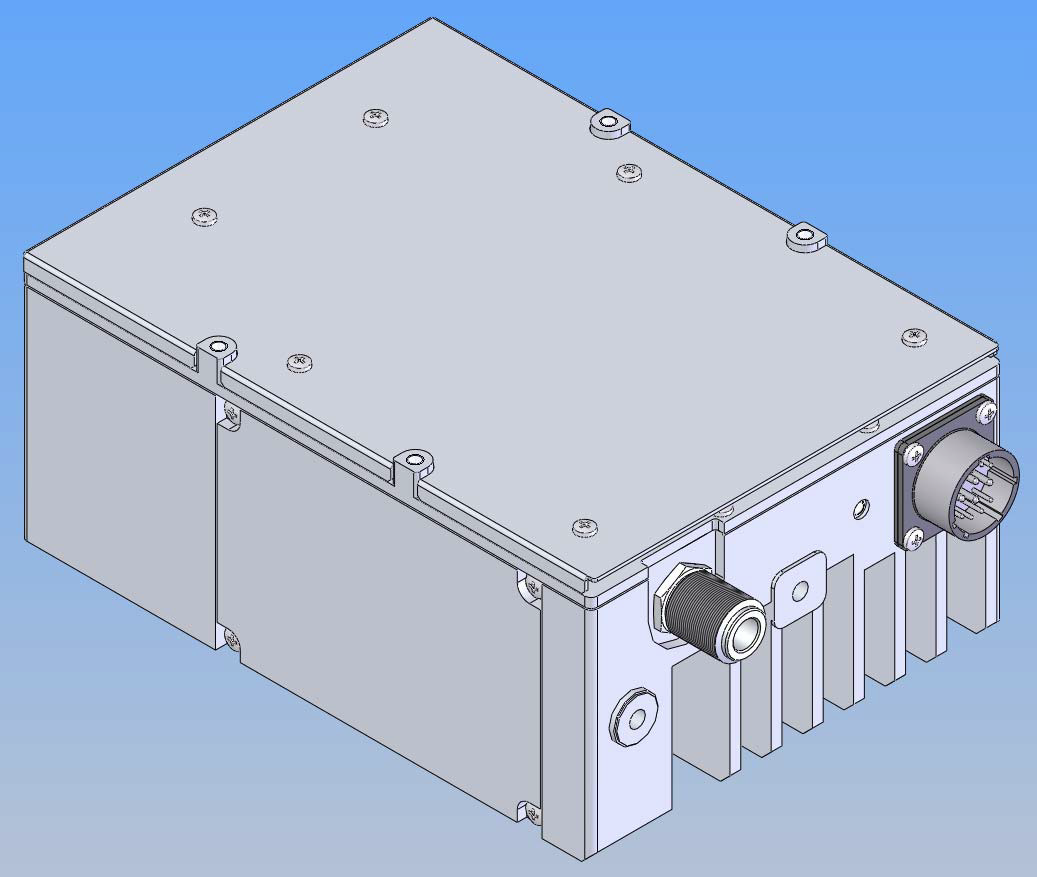

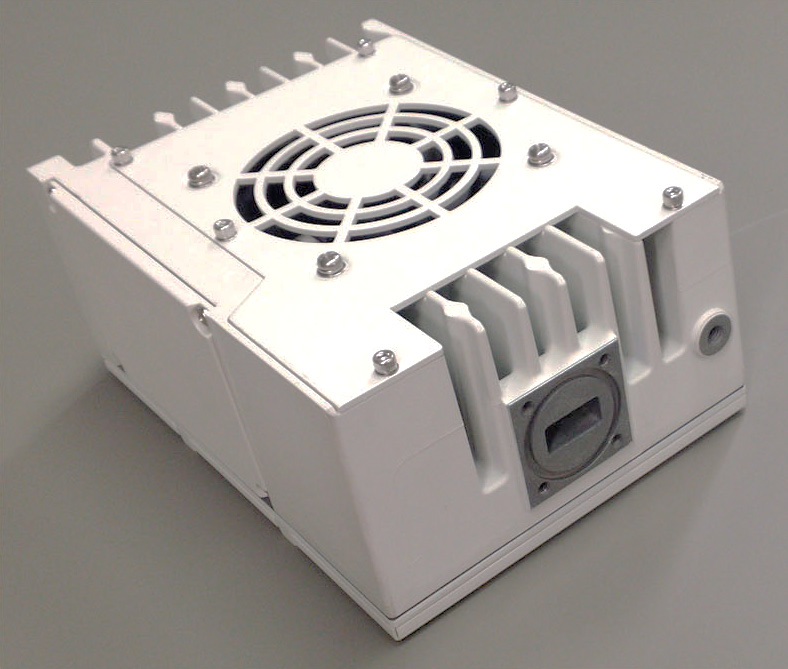

NJT8319N comes in a single, weatherized housing rated for outdoor use. The Unithas either an N-Type or a F-type female connector input, a WR75 waveguide withgrooved flange output, and optional MS connector for DC power input. The Unitis operated by +48 V DC power (Range: +36 to +60 V) input.
NJT8319N has the function of Monitor and Control which is complied with FSK communication and RS-232C interfaces.
